Focus on product development, production and sales
| Electromagnetic brake | Lifting weight (kg) | |||||||||
| Model | Rated power (W) | Voltage (V) | Frequency (Hz) | Rated current (A) | Speed (rpm) | Motor torque (N.m) | Torque(N.m) | Voltage (V) | Time(s) | (1:15 reducer) |
| MF750 | 750 | 220 | 50 | 3.99 | 1390 | 5.73 | 10 | 96 | 0.015 | 75 |
| MF1500 | 3000 | 220/380 | 50 | 6.65/3.85 | 1390 | 9.55 | 15 | 96 | 0.015 | 150 |

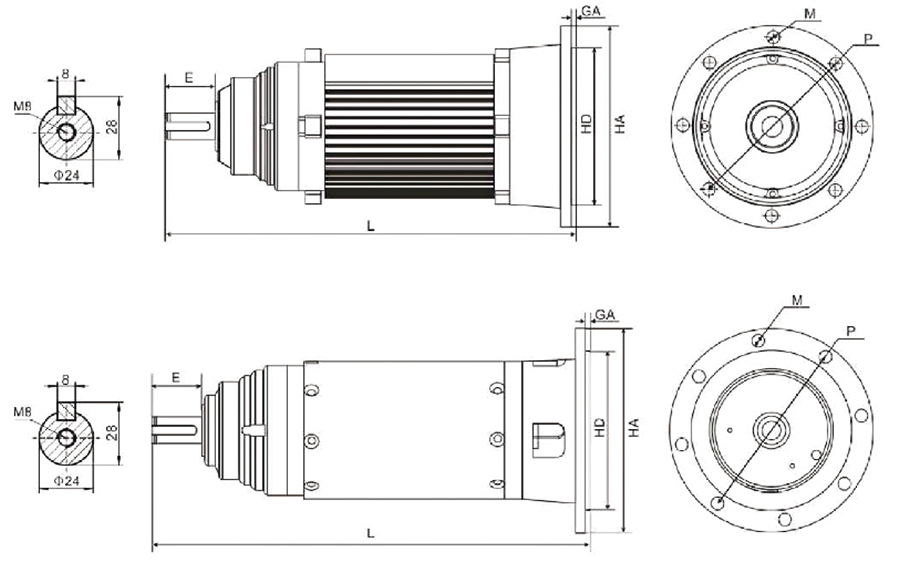

| Model | A | D | P | M | E | HD | F | GA | L |
| MF-A | 179 | 24 | 159 | 11 | 44 | 140 | 8 | 5 | 365 |
| MF-B | 179 | 24 | 159 | 11 | 44 | 140 | 8 | 5 | 365 |
