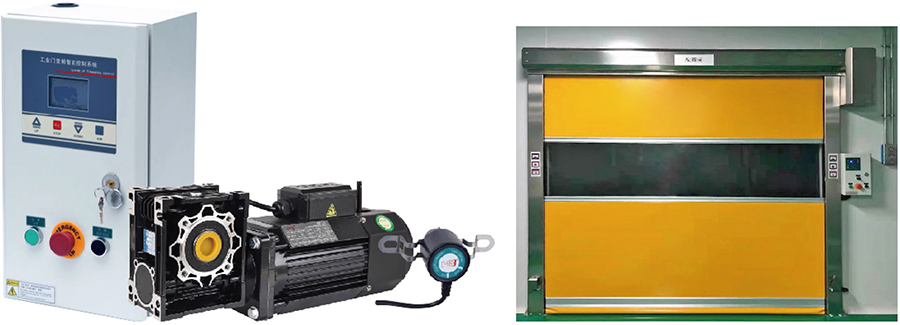

MBB industrial fast door MBB-T series


Technical parameter
Electromagnetic brake
Model Rated power (W) Voltage (V) Frequency (Hz) Rated current (A) Speed (rpm) Motor torque (N.m) Torque (N.m) Voltage (V) Time(s)
MBB7134 450 220 50 2.45 1390 2.8 6 96 0.015
MBB7144 800 220 50 3.87 1390 5 6 96 0.015
MBB8034 1100 220 50 4.98 1390 7 10 96 0.015
MBB8044-1 1500 220 50 7.08 1390 10 10 96 0.015
MBB8044- -2 1800 220 50 7.92 1390 11.4 15 96 0.015
MBB8054 2200 220/380 50 9.2/5.31 1390 14 15 96 0.015

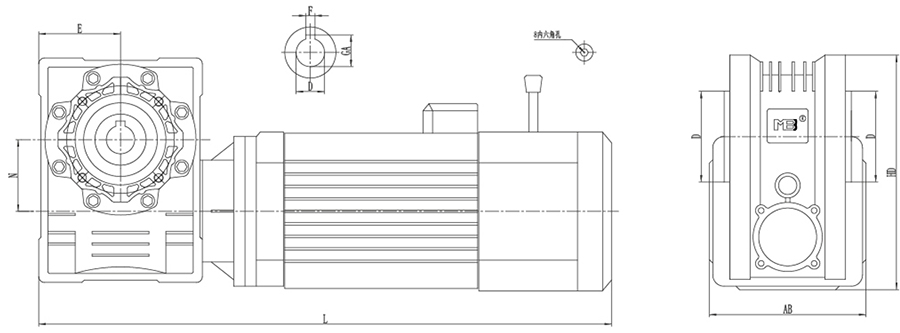

Shape and installation dimensions


Model AB HD E N D MD GA F P M L
MBB7134 92 144 60 50 19 70 23.8 8 85 6 391
MBB7144 92 144 60 50 19 70 23.8 8 85 6 414
MBB8034 112 174 72 63 19 80 21.8 8 95 8 444
MBB8044-1 112 174 72 63 19 80 21.8 8 95 8 470
MBB8044-4 112 174 72 63 19 80 21.8 8 95 8 484
MBB8054 112 174 72 63 19 80 21.8 8 95 8 504
MBB8054-B 112 174 72 63 19 80 21.8 8 95 8 504
