Focus on product development, production and sales
| Electromagnetic brake | |||||||||
| Model | Rated power (W) | Voltage (V) | Frequency (Hz) | Rated current (A) | Speed (rpm) | Motor torque (N.m) | Torque(N.m) | Voltage (V) | time(s) |
| HDM7134 | 450 | 220 | 50 | 2.33 | 1390 | 3.09 | 6 | 96 | 0.015 |
| HDM8024 | 750 | 220 | 50 | 4.31 | 1390 | 4.7 | 6 | 96 | 0.015 |
| HDM9024 | 1500 | 220/380 | 50 | 3.67 | 1415 | 9.5 | 10 | 96 | 0.015 |
| HDM9024 | 2200 | 220/380 | 50 | 5.32 | 1415 | 14 | 15 | 96 | 0.015 |
| HDM100L1-4 | 2200 | 220/380 | 50 | 5.27 | 1430 | 14 | 15 | 96 | 0.015 |
| HDM100L2-4 | 3000 | 220/380 | 50 | 6.9 | 1430 | 19 | 25 | 96 | 0.015 |
| HDM100L3-4 | 3500 | 220/380 | 50 | 8.11 | 1430 | 22.2 | 25 | 96 | 0.015 |

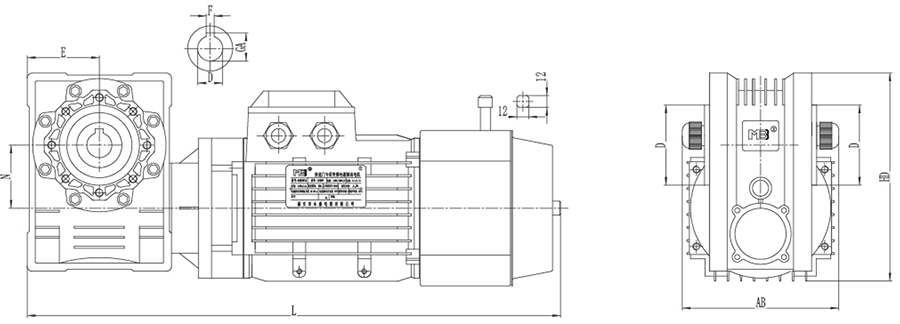

| Model | AB | HD | E | N | D | MD | GA | F | P | M | L |
| HDM71 | 92 | 144 | 60 | 50 | 19 | 70 | 23.8 | 8 | 85 | 8 | 358 |
| HDM80 | 112 | 174 | 72 | 63 | 19 | 70 | 23.8 | 8 | 95 | 8 | 454 |
| HDM90 | 112 | 174 | 72 | 63 | 24 | 80 | 28.3 | 8 | 95 | 8 | 517 |
| HDM100 | 120 | 205 | 86 | 75 | 28 | 95 | 41.3 | 10 | 115 | 8 | 595 |
