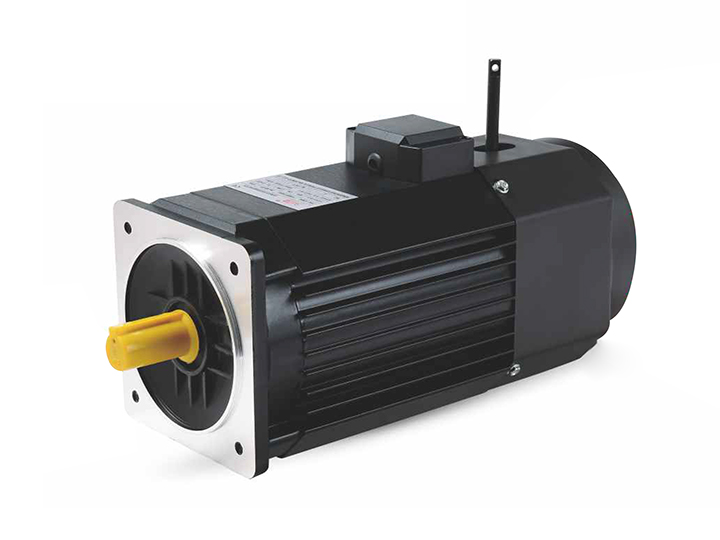

MBB series electromagnetic braking frequency motor is specially designed for high speed industry door. The feature of the motor, electromagnetic function, controlling the electromagnetic noise and vibration that caused by high frequency harmonics，and makes the motor quieter and smoother. The motor's wide frequency constant torque speed regulation characteristic making the speed regulation is more stable, does not have the torque ripple. With the high efficiency electromagnetic brake, the braking torque is large, the braking speed is rapid and the braking operation is accurate, which provides better power for the fast industrial door.

SpecifIcation
Large torque, low noise, low vibration, protection class IP54, insulation class F, NSK bearing, ambient temperature -20~40°C, altitude ≤1000m.

Technical Parameters

Model	Rated power (W)	Voltage (V)	Frequency (HZ)	Rated current (A)	Speed (rpm)	Motor torque (N.m)	Electromagnetic braking torque (N.m)	Electromagnetic brake voltage (V)	Time(s)
MBB7134	450	220	50	2.45	1390	2.8	6	96	0.015
MBB7144	800	220		3.87	1390	5	6
MBB8034	1100	220		4.98	1390	7	10
MBB8044-1	1500	220		7.08	1390	10	10
MBB8044-2	1800	220		7.92	1390	11.4	15
MBB8054	2200	220/380		9.2/5.31	1390	14	15

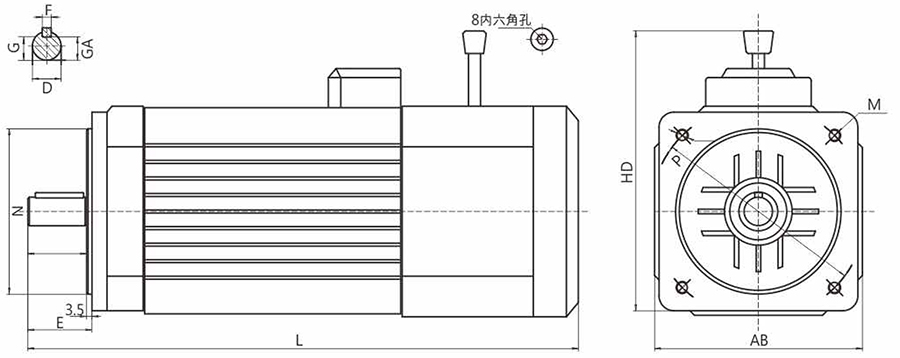

Model	AB	HD	E	N	D	G	GA	F	P	M	L
MBB7134	120	162	41	95	19	16	21.8	6	129	8	292
MBB7144	120	162	41	95	19	16	21.8	6	129	8	315
MBB8034	136	180	42.5	110	19	15.5	21.8	6	143	8	320
MBB8044-1	136	180	42.5	110	19	15.5	21.8	6	143	8	345
MBB8044-2	136	180	42.5	110	19	15.5	21.8	6	143	8	360
MBB8054	136	180	42.5	110	19	15.5	21.8	6	143	8	380
MBB8054-B	136	180	42.5	110	24	20	28	8	143	8	380
